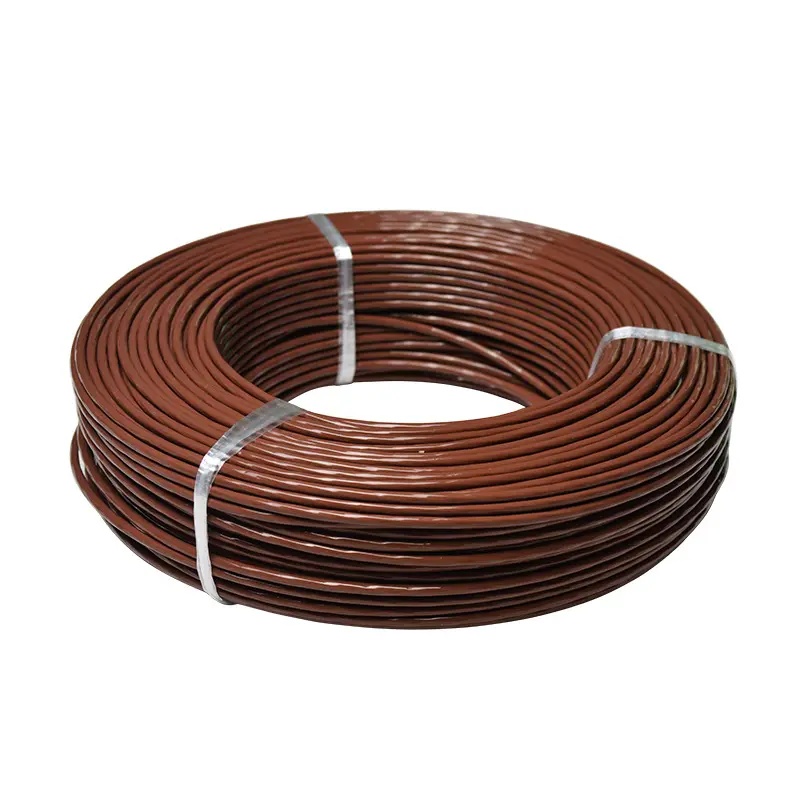

UL1333

Style 1333 Extruded Fluorinated Ethylene Propylene Insulated Wire.
______________________________________________________________________________
Rating 150 deg. C, 300 V.
Rated temperature ：150℃
Rated voltage ：300V
Reference standard：UL Subject 758, UL1581
& CSA C22.2 No.210.2

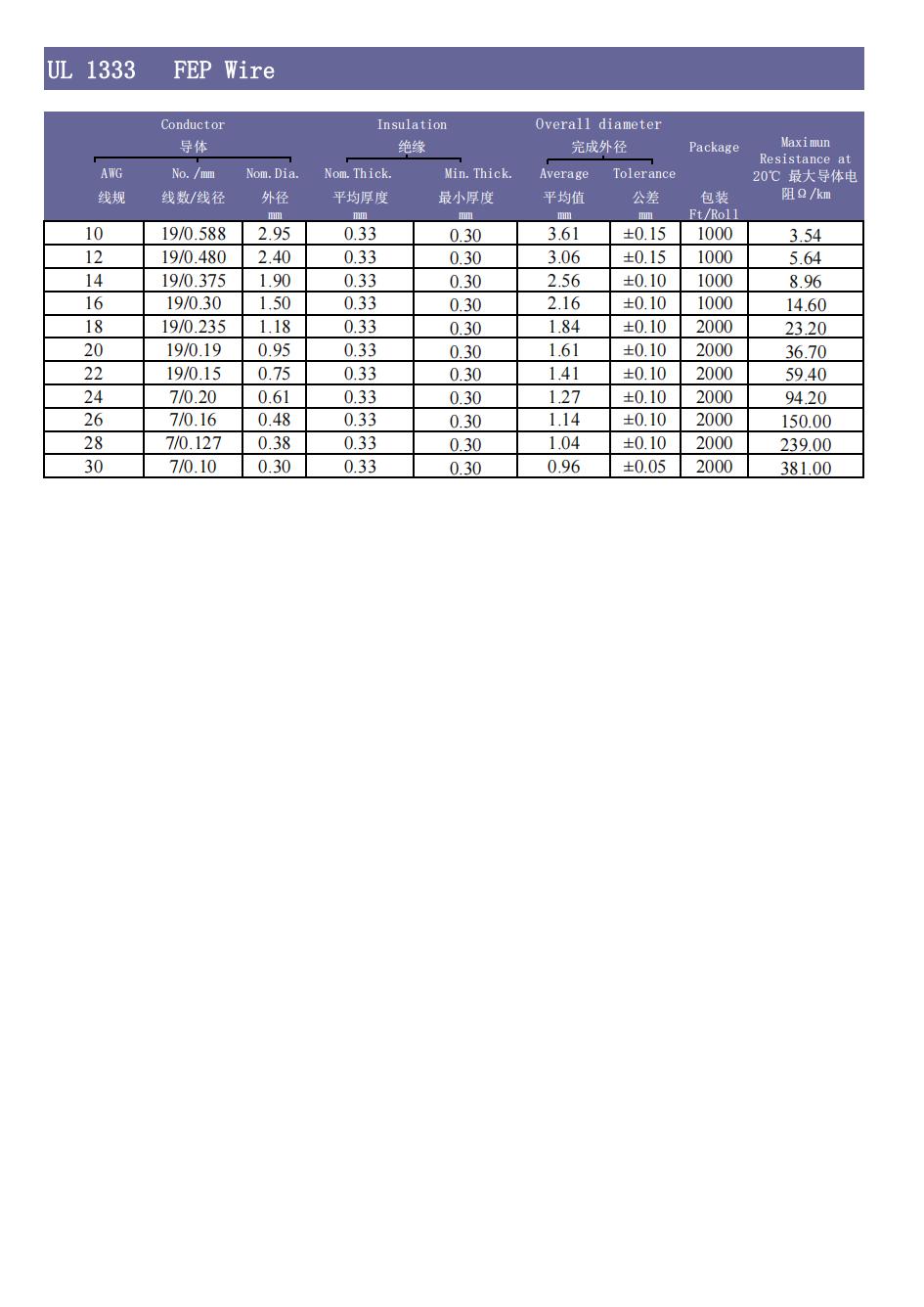

Conductor 30 AWG - 10 AWG, solid or stranded
Passes UL VW-1 & CSA FT1 vertical flame test
*Standard Appliance Wiring Material UL 758
Instructions Detailed Examination.
to UL Tensile Strength and Elongation of Insulation,
*Representative before aging.
* Flexing.
* Spark Test, 4,000 V.
UL (4) Detailed Examination.
Counter-Check (4) Tensile Strength and Elongation of Insulation.
Program *
* (4) Heat Shock, except at 250 deg. C.
* (4) Cold Bend
