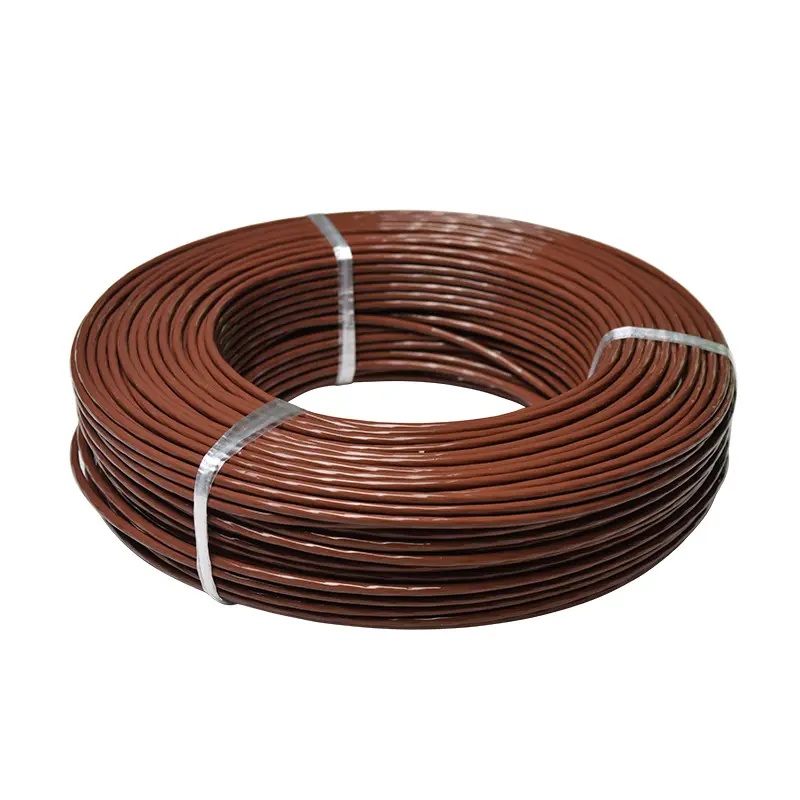

UL10362

Rating 250°C, 600 V.
*Conductor 30-10 AWG, solid or stranded conductor material, stranding.
Insulation Perfluoroalkoxy. (PFA) 10 mils min avg 8 mils min at any
point.
*Standard Appliance Wiring Material UL 758.
Detailed Examination.
Tensile strength and elongation of insulation
Spark Test.
*Counter-Check
*Program*
(4) Detailed Examination.
(4) Tensile strength and elongation of insulation.
(4) Heat shock.
(4) Cold bend.
(4) Horizontal Flame Test
Reference standard：UL Subject 758, UL1581
& CSA C22.2 No.210.2
Conductor 30 AWG - 4/0AWG, solid or stranded
Passes UL VW-1 & CSA FT1 vertical flame test
