UL Lead Wire
3068

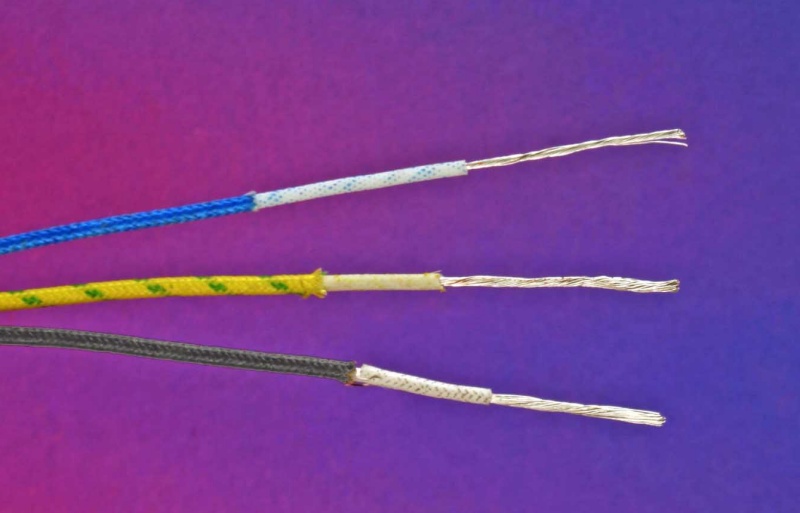

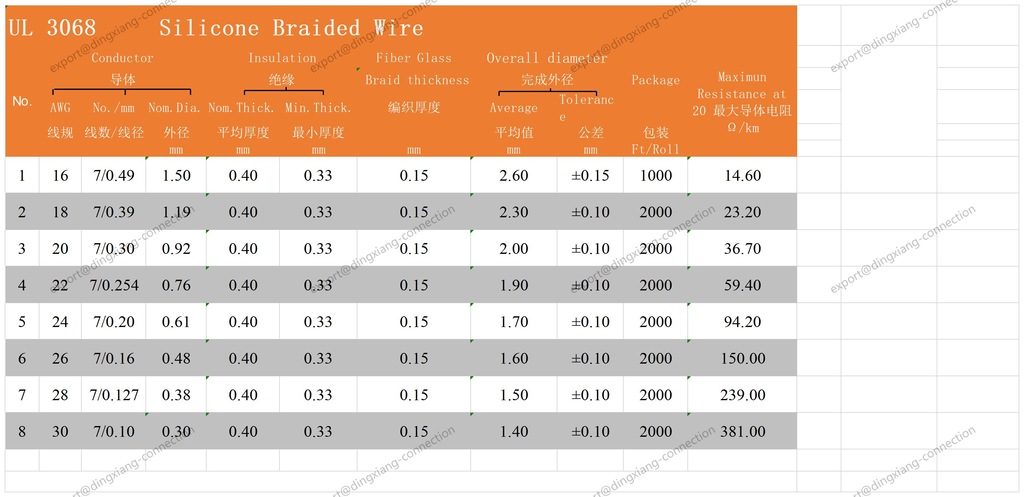

Style 3068 Silicone Rubber-Insulated Wire
Rating 150°C, 300 Volts
Conductor No. 30-16 AWG Solid or Stranded of Nickel or Copper.
Copper shall be Tin, Nickel or Silver Coated.
Insulation Silicone-Rubber, Class 22, 15 mils min avg, 13 mils min at
any point
Covering Same as for Type SF-1 Fixture Wire
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SFF-1 Fixture Wire but omit Insulationto UL Resistance Test and Vertical Flame Test.
Representative Spark Test.
Flame Test.
UL (4) Same as for Type SFF-1 Fixture Wire; omit Vertical
Counter-Check Flame Test, aging shall be conducted annual.
Program (4) Flame Test.
Rated temperature ： 150℃
Rated voltage ：300V
Reference standard：UL Subject 758, UL1581
Stranded，tinned or bare copper conductor
Silicone Rubber Insulation
Flame resistance CUL FT2
Rating 150°C, 300 Volts
Conductor No. 30-16 AWG Solid or Stranded of Nickel or Copper.
Copper shall be Tin, Nickel or Silver Coated.
Insulation Silicone-Rubber, Class 22, 15 mils min avg, 13 mils min at
any point
Covering Same as for Type SF-1 Fixture Wire
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SFF-1 Fixture Wire but omit Insulationto UL Resistance Test and Vertical Flame Test.
Representative Spark Test.
Flame Test.
UL (4) Same as for Type SFF-1 Fixture Wire; omit Vertical
Counter-Check Flame Test, aging shall be conducted annual.
Program (4) Flame Test.
Rated temperature ： 150℃
Rated voltage ：300V
Reference standard：UL Subject 758, UL1581
Stranded，tinned or bare copper conductor
Silicone Rubber Insulation
Flame resistance CUL FT2
