3071

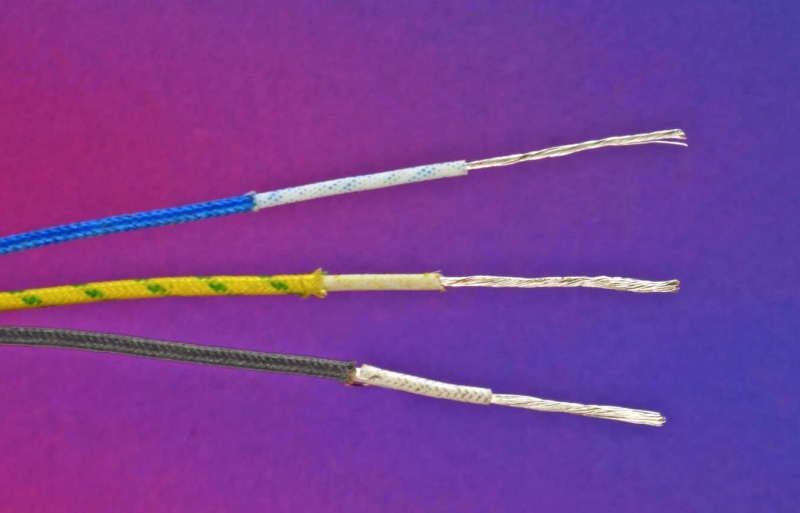

Style 3071 Silicone Rubber-Insulated Wire.
Rating 200 deg. C, 600 V.
Conductor No. 18-13 AWG Solid or Stranded.
Insulation Nominal 1/32 inch wall Silicone rubber, Class 22.
Covering Same as for Type SF-2 Fixture Wire.
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SF-2 Fixture Wire but omit
to UL Insulation-Resistance Test and Vertical Flame Test.
Representative Spark Test.
Flame Test.
UL (4) Same as for Type SF-2 Fixture Wire; aging shall be
Counter-Check conducted annually, omit Vertical Flame Test.
Program (4) Flame Test.
Marking General.
Use Internal Wiring of Appliances.
Rated temperature ： 200℃
Rated voltage ：600V
Reference standard：UL Subject 758, UL1581
Stranded，tinned or bare copper conductor
Silicone Rubber Insulation
Flame resistance CUL FT2
