UL Lead Wire

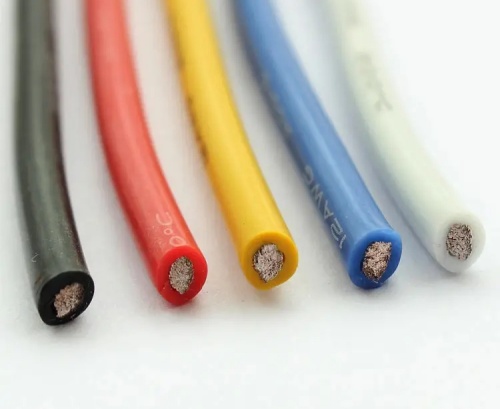

UL3135
Style 3135 Insulated Wire.
Rating 200°C, 600 Volts.
Conductor No. 26-12 AWG solid or stranded.
Insulation Silicone Rubber, Class 22, 30 mils minimum Average,
27 mils minimum at any point.
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SF-2 Fixture Wire but omit Insulation
to UL Resistance Test and Vertical Flame Test.
Representative Spark Test.
UL (4) Same as for Type SF-2 Fixture Wire; aging shall be
Counter-Check conducted annually, omit Vertical Flame Test.
Program (4) Horizontal Flame Test.
Marking General.
Use Internal Wiring of Appliances where totally enclosed.
Rating 200°C, 600 Volts.
Conductor No. 26-12 AWG solid or stranded.
Insulation Silicone Rubber, Class 22, 30 mils minimum Average,
27 mils minimum at any point.
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SF-2 Fixture Wire but omit Insulation
to UL Resistance Test and Vertical Flame Test.
Representative Spark Test.
UL (4) Same as for Type SF-2 Fixture Wire; aging shall be
Counter-Check conducted annually, omit Vertical Flame Test.
Program (4) Horizontal Flame Test.
Marking General.
Use Internal Wiring of Appliances where totally enclosed.
