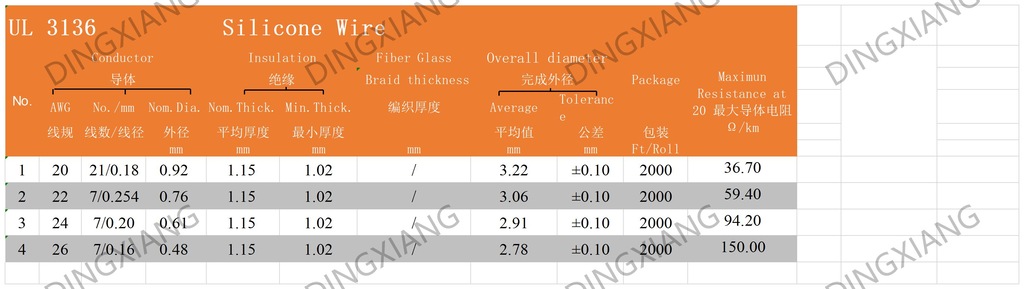

UL3136

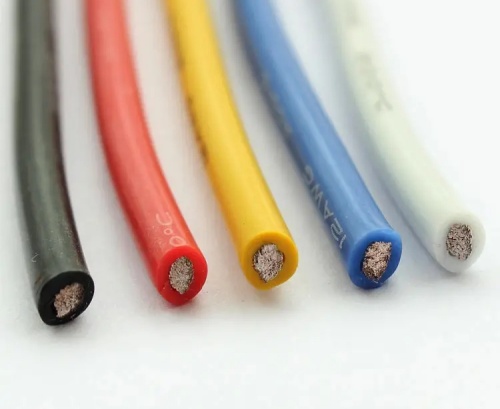

Style 3136 Silicone Rubber-Insulated Wire.
Rating 150°C, 300 Volts.
Conductor No. 26-20 AWG solid or stranded of nickel or copper. All
copper shall be tin, nickel or silver coated.
Insulation Nominal 3/64 inch wall silicone rubber, Class 22.
Covering None.
Standard Appliance Wiring Material UL 758.
Instructions Same as for Type SFF-1 Fixture Wire but omit Insulation
to UL Resistance Test and Vertical Flame Test.
Representative Spark Test.
Flame Test.
UL (4) Same as for Type SFF-1 Fixture Wire; aging shall be
Counter-Check conducted annually; omit Vertical Flame Test.
Program (4) Flame Test.
Marking General.
Use Internal Wiring of Appliances where totally enclosed
